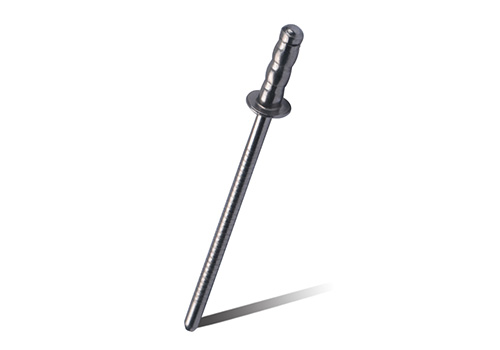

All Stainless Steel Multi-Grip Type Blind Rivets
All Stainless Steel Multi-Grip Type Blind Rivets
PARAMETER

All Stainless Steel Multi-Grip Type Blind Rivets

Body:

Stainless Steel

Body

Natural

Mandrel:

Stainless Steel

Mandrel

Natural


D

L

dk

k

dm

RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)

[+1/-0]

MIN-MAX

MAX.

MAX.

Ф

MIN.

MIN.

3.2    (1/8")

BBMG3208

8.0

1.0-4.0

6.7

1.3

2.25

3.3-3.4

1700

2000

BBMG3210

10.0

2.5-6.0

BBMG3212

12.0

1.5-8.0

BBMG3214

14.0

3.5-9.5

BBMG3216

16.0

5.5-11.5

4.0   (5/32")

BBMG4008

8.0

1.0-3.5

8.4

1.5

2.85

4.1-4.2

2700

3400

BBMG4010

10.0

1.5-5.0

BBMG4012

12.0

3.5-7.0

BBMG4014

14.0

1.5-9.0

BBMG4016

16.0

3.5-11.0

BBMG4018

18.0

5.5-12.5

BBMG4020

20.0

7.5-14.5

4.8  (3/16")

BBMG4810

10.0

1.5-4.5

10.1

2.0

3.35

4.9-5.0

4000

4500

BBMG4812

12.0

2.0-6.5

BBMG4814

14.0

3.0-8.5

BBMG4816

16.0

3.0-10.5

BBMG4818

18.0

5.0-12.5

BBMG4820

20.0

7.0-14.5

BBMG4822

22.0

9.0-16.5

BBMG4825

25.0

11.0-19.0

BBMG4827

27.0

13.0-21.0

BBMG4830

30.0

16.0-24.0
