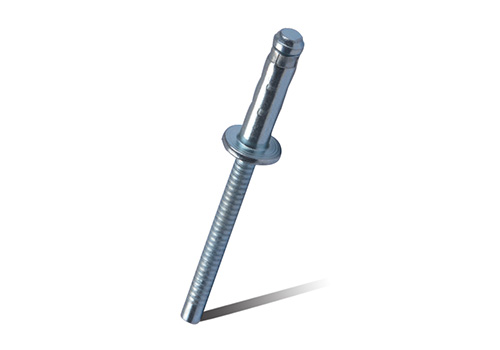

All Steel Multi-Grip Type Blind Rivets
All Steel Multi-Grip Type Blind Rivets
PARAMETER

All Steel Multi-Grip Type Blind Rivets

Body:

Carbon Steel

Body

Zinc Plated

Mandrel:

Carbon Steel

Mandrel

Zinc Plated


D

L

dk

k

dm

RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)

[+1/-0]

MIN-MAX

MAX.

MAX.

Ф

MIN.

MIN.

3.2    (1/8")

SSMG3208

8.0

1.0-4.0

6.7

1.3

2.25

3.3-3.4

1000

1200

SSMG3210

10.0

2.5-6.0

SSMG3212

12.0

1.5-8.0

SSMG3214

14.0

3.5-9.5

SSMG3216

16.0

5.5-11.5

4.0   (5/32")

SSMG4008

8.0

1.0-3.5

8.4

1.5

2.85

4.1-4.2

1500

2000

SSMG4010

10.0

1.5-5.0

SSMG4012

12.0

3.5-7.0

SSMG4014

14.0

1.5-9.0

SSMG4016

16.0

3.5-11.0

SSMG4018

18.0

5.5-12.5

SSMG4020

20.0

7.5-14.5

4.8  (3/16")

SSMG4810

10.0

1.5-4.5

10.1

2.0

3.35

4.9-5.0

2400

2900

SSMG4812

12.0

2.0-6.5

SSMG4814

14.0

3.0-8.5

SSMG4816

16.0

3.0-10.5

SSMG4818

18.0

5.0-12.5

SSMG4820

20.0

7.0-14.5

SSMG4822

22.0

9.0-16.5

SSMG4825

25.0

11.0-19.0

SSMG4827

27.0

13.0-21.0

SSMG4830

30.0

16.0-24.0
