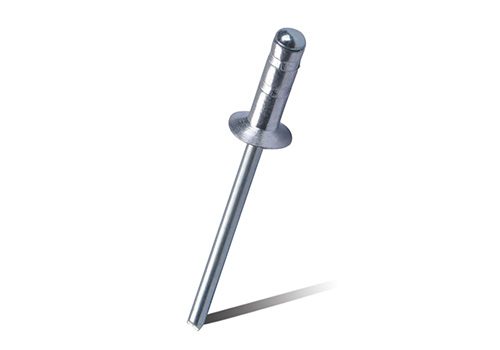

Aluminum/Steel multi-grip CSK Head Blind Rivets
Aluminum/Steel multi-grip CSK Head Blind Rivets
PARAMETER

Aluminum/Steel CSK Head Blind Rivets

Body:

Aluminum

Body

Polished

Mandrel:

Steel

Mandrel

Zinc Plated


D

L

dk

k

dm

RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)

[+1/-0]

MIN-MAX

MAX.

MAX.

Ф

MIN.

MIN.

3.2    +0.08      -0.15

ASMGC3206

6.0

1.0-3.5

5.8-6.2

1.3

2.00

3.3-3.4

650

850

ASMGC3208

8.0

1.5-5.0

ASMGC3210

10.0

2.5-7.0

ASMGC3212

12.0

4.5-9.0

ASMGC3214

14.0

6.5-10.5

ASMGC3216

16.0

9.0-12.5

4.0   +0.08      -0.15

ASMGC4006

6.0

1.0-3.0

6.9-7.5

1.7

2.50

4.1-4.2

950

1500

ASMGC4008

8.0

1.5-5.0

ASMGC4010

10.0

2.0-6.5

ASMGC4012

12.0

3.5-8.5

ASMGC4014

14.0

5.5-10.5

ASMGC4016

16.0

6.0-12.5

ASMGC4018

18.0

9.5-14.5

ASMGC4020

20.0

11.5-16.5

4.8   +0.08      -0.15

ASMGC4810

10.0

1.5-6.0

8.3-9.5

2.0

3.00

4.9-5.0

1320

2000

ASMGC4812

12.0

2.0-8.0

ASMGC4814

14.0

3.5-9.5

ASMGC4816

16.0

6.0-11.5

ASMGC4818

18.0

8.0-13.5

ASMGC4820

20.0

10.0-15.5

ASMGC4822

22.0

12.0-17.5

ASMGC4824

24.0

12.0-19.0

ASMGC4827

27.0

17.0-22.0

ASMGC4830

30.0

20.0-25.0
