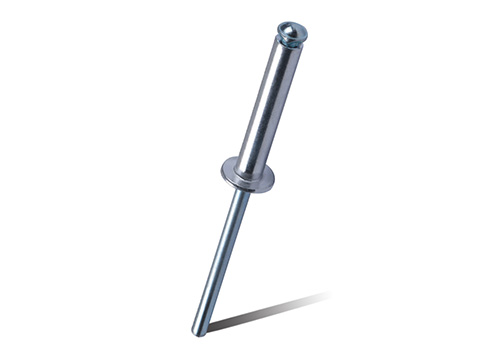

Aluminum/Steel Peel Type
Aluminum/Steel Peel Type
PARAMETER

Aluminum/Steel Peel Type

Body:

Aluminum

Body

Polished

Mandrel:

Steel

Mandrel

Zinc Plated


D

L

dk

k

dm

RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)

[+1/-0]

MIN-MAX

MAX.

MAX.

Ф

MIN.

MIN.

3.2(1/8'')

ASP3210

10.0

1.0-5.0

5.8-6.7

1.3

2.0

3.4-3.5

500

700

ASP3212

12.0

3.0-7.0

ASP3214

14.0

5.0-9.0

ASP3216

16.0

7.0-11.0

ASP3218

18.0

9.0-13.0

4.0(5/32'')

ASP4010

10.0

2.0-6.5

6.9-8.4

1.7

2.4

4.2-4.4

850

1000

ASP4012

12.0

3.5-8.5

ASP4014

14.0

5.5-10.5

ASP4016

16.0

6.0-12.5

ASP4018

18.0

9.5-14.5

ASP4020

20.0

11.5-16.5

4.8        (3/16'')

ASP4810

10.0

1.5-4.0

8.3-10.1

2.0

2.9

5.25-5.45

1700

1700

ASP4812

12.0

2.0-6.0

ASP4815

15.0

3.0-9.0

ASP4818

18.0

5.0-11.0

ASP4821

21.0

8.0-15.0

ASP4825

25.0

12.0-19.0

ASP4827

27.0

14.0-21.0

ASP4830

30.0

16.0-24.0

ASP4835

35.0

20.0-28.0
