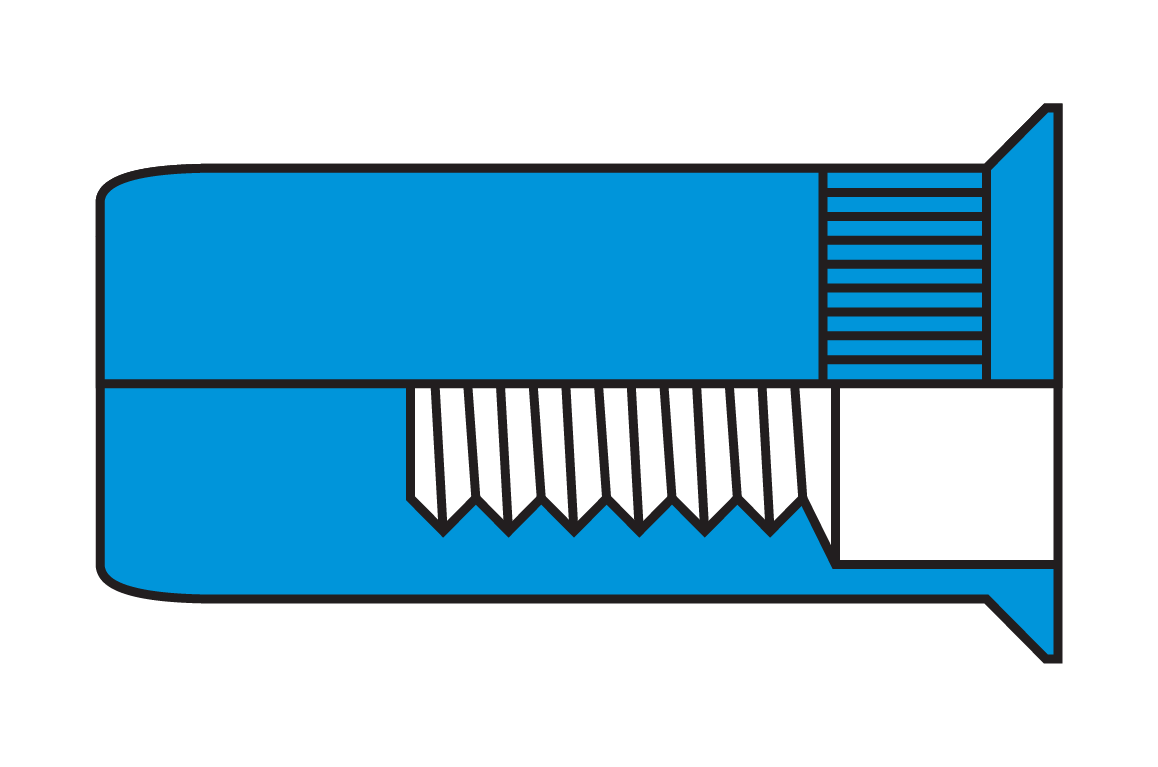

Countersunk Head Knurled Body Close End Blind Rivet Nuts
Countersunk Head Knurled Body Close End Blind Rivet Nuts
Countersunk Head Knurled Body Close End Blind Rivet Nuts
Countersunk Head Knurled Body Close End Blind Rivet Nuts
Countersunk Head Knurled Body Close End Blind Rivet Nuts
Countersunk Head Knurled Body Close End Blind Rivet Nuts
PARAMETER


Countersunk Head Knurled Body Close End Blind Rivet Nuts

Thread

P/N

T(GRIP RANGE) Min Max

A       Rer

Hole Size +0.1  0

D
+0.07
-0.1

B

K

L

M4

CH-KBC-0430

1.5-3.0

10.5

6.0

5.9

8.5

1.5

17.5

M5

CH-KBC-0535

1.5-3.5

11.5

7.0

6.9

9.5

1.5

20.0

M6

CH-KBC-0640

1.5-4.0

12.7

9.0

8.9

11.5

1.5

23.0

M8

CH-KBC-0840

1.5-4.0

14.0

11.0

10.9

13.5

1.5

27.0

M10

CH-KBC-1045

2.0-4.5

19.0

13.0

11.9

14.5

1.7

30.0
