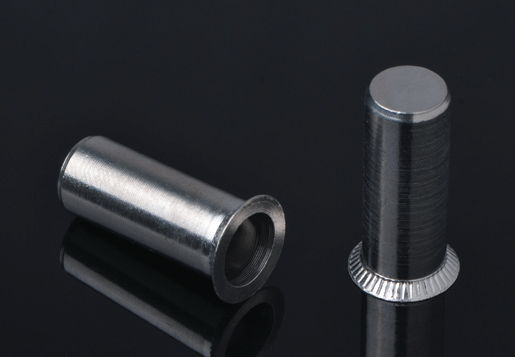

Countersunk Head Round Body Plain Close End Blind Rivet Nuts /Stainless Steel
Countersunk Head Round Body Plain Close End Blind Rivet Nuts /Stainless Steel
Countersunk Head Round Body Plain Close End Blind Rivet Nuts /Stainless Steel
Countersunk Head Round Body Plain Close End Blind Rivet Nuts /Stainless Steel
Countersunk Head Round Body Plain Close End Blind Rivet Nuts /Stainless Steel
Countersunk Head Round Body Plain Close End Blind Rivet Nuts /Stainless Steel

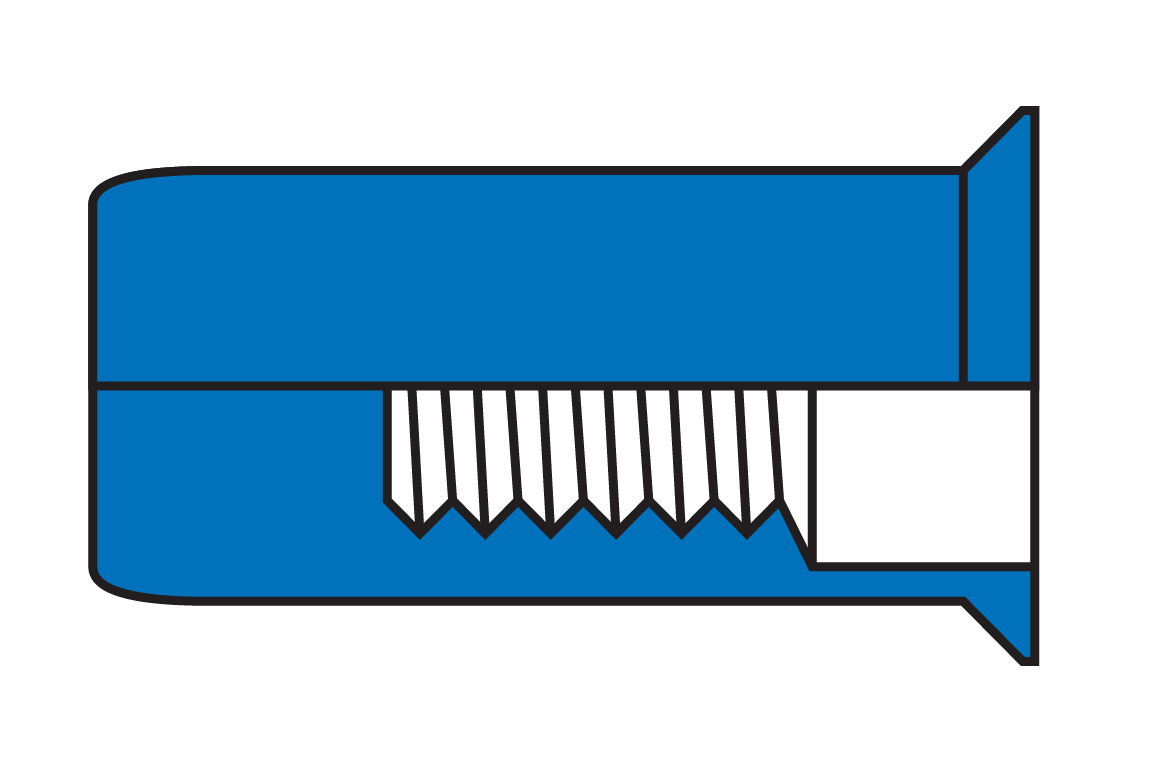

PARAMETER


Countersunk Head Round Body Plain Close End Blind Rivet Nuts /Stainless Steel

Thread

P/N

T(GRIP RANGE) Min Max

A       Rer

Hole Size +0.1  0

D      +0.07  -0.1

B

K

L

M4

CH-RBC/SS-0435

1.6-3.5

12.3

6.0

5.9

9.0

1.5

17.3

M5

CH-RBC/SS-0535

1.6-3.5

13.5

7.0

6.9

10.0

1.5

19.5

M6

CH-RBC/SS-0640

1.6-4.0

17.5

9.0

8.9

12.0

1.5

23.5

M8

CH-RBC/SS-0845

1.6-4.5

20.0

11.0

10.9

14.0

1.5

26.5

M10

CH-RBC/SS-1050

1.6-5.0

25.5

13.0

12.9

16.0

1.7

33.0

M12

CH-RBC/SS-1235

1.6-3.5

29.5

16.0

15.9

19.0

1.8

38.0
