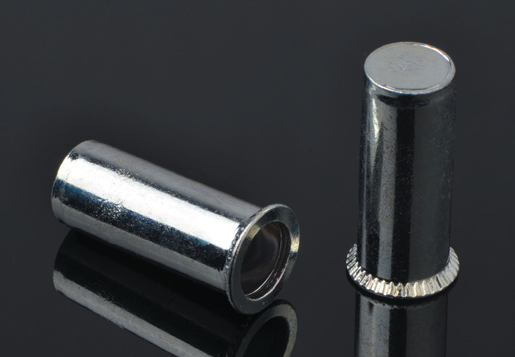

Countersunk Head Round Body Plain Close End Blind Rivet Nuts
Countersunk Head Round Body Plain Close End Blind Rivet Nuts
Countersunk Head Round Body Plain Close End Blind Rivet Nuts
Countersunk Head Round Body Plain Close End Blind Rivet Nuts
Countersunk Head Round Body Plain Close End Blind Rivet Nuts
Countersunk Head Round Body Plain Close End Blind Rivet Nuts
PARAMETER

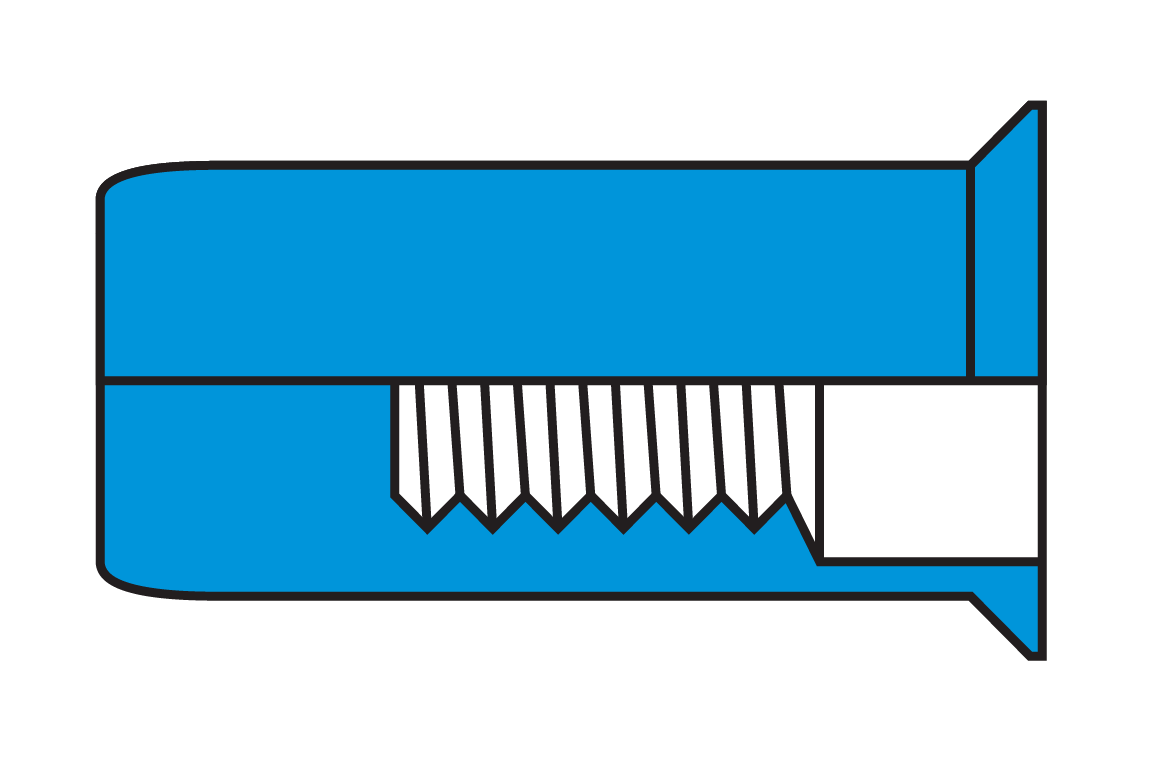

Countersunk Head Round Body Plain Close End Blind Rivet Nuts

Thread

P/N

T(GRIP RANGE) Min Max

A       Rer

Hole Size +0.1
0

D
+0.07
-0.1

B

K

L

M4

CH-RBC-0430

1.5-3.0

10.5

6.0

5.9

8.5

1.5

17.5

M5

CH-RBC-0535

1.5-3.5

11.5

7.0

6.9

9.5

1.5

20.0

M6

CH-RBC-0640

1.5-4.0

12.7

9.0

8.9

11.5

1.5

23.0

M8

CH-RBC-0840

1.5-4.0

14.0

11.0

10.9

13.5

1.5

27.0

M10

CH-RBC-1045

2.0-4.5

19.0

13.0

11.9

14.5

1.7

30.0
