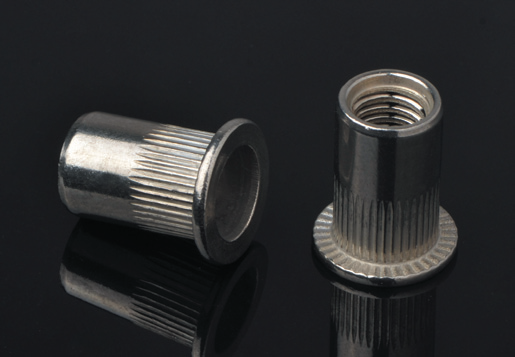

Flat Head Knurled Body Blind Rivet Nuts /Stainless Steel
Flat Head Knurled Body Blind Rivet Nuts /Stainless Steel
Flat Head Knurled Body Blind Rivet Nuts /Stainless Steel
Flat Head Knurled Body Blind Rivet Nuts /Stainless Steel

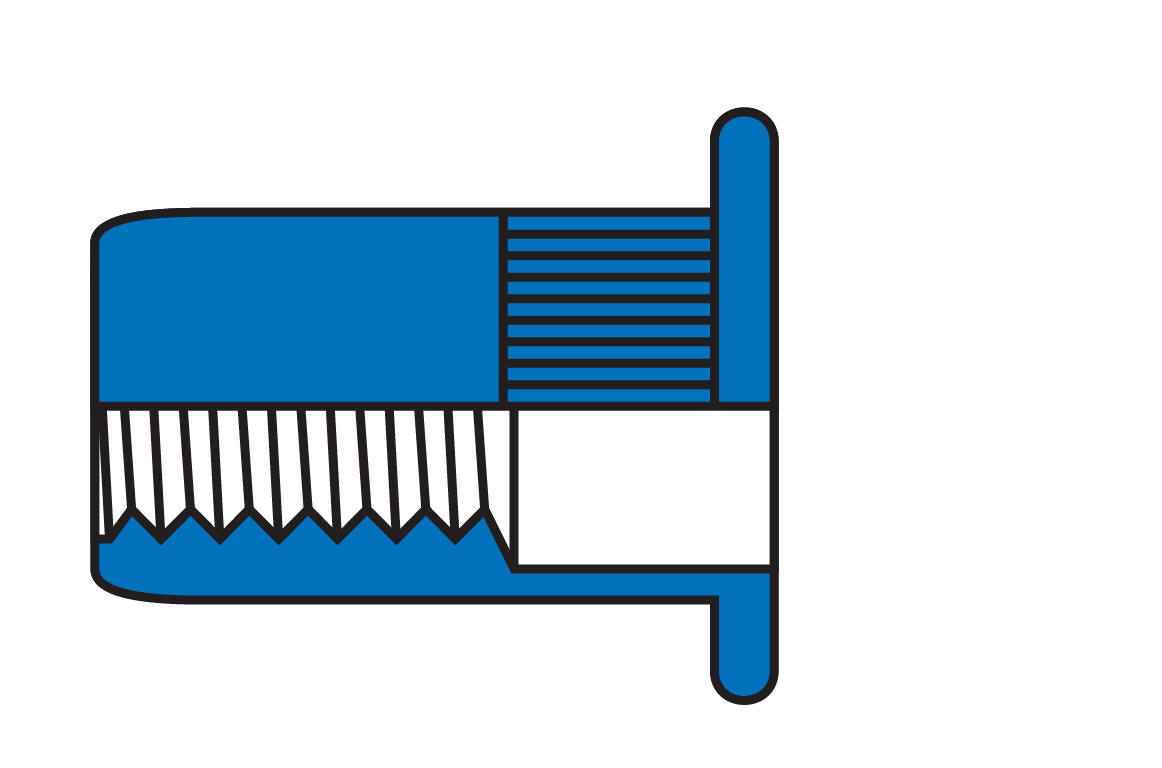

PARAMETER


Flat Head Knurled Body Blind Rivet Nuts /Stainless Steel

Thread

P/N

T(GRIP RANGE) Min Max

A       Rer

Hole Size +0.1  0

D      +0.07  -0.1

B

K

L

M3

FH-KB/SS-0320

0.5-2.0

4.5

5.0

4.9

7.0

0.8

8.8

M3

FH-KB/SS-0330

2.0-3.0

6.2

5.0

4.9

7.0

0.8

10.5

M4

FH-KB/SS-0420

0.5-2.0

6.0

6.0

5.9

9.0

0.8

10.8

M4

FH-KB/SS-0440

2.0-4.0

8.0

6.0

5.9

9.0

0.8

13.0

M5

FH-KB/SS-0525

0.5-2.5

7.0

7.0

6.9

10.0

1.0

13.0

M5

FH-KB/SS-0545

2.5-4.5

9.5

7.0

6.9

10.0

1.0

15.5

M6

FH-KB/SS-0630

0.5-3.0

8.5

9.0

8.9

13.0

1.5

15.0

M6

FH-KB/SS-0650

3.0-5.0

11.0

9.0

8.9

13.0

1.5

17.5

M8

FH-KB/SS-0835

0.5-3.5

11.0

11.0

10.9

15.0

1.5

18.0

M8

FH-KB/SS-0860

3.5-6.0

14.0

11.0

10.9

15.0

1.5

21.0

M10

FH-KB/SS-1035

1.0-3.5

12.0

13.0

12.9

17.0

1.8

20.3

M10

FH-KB/SS-1055

3.5-5.5

15.7

13.0

12.9

17.0

1.8

24.0

M12(16H)

FH-KB/SS-1235

1.0-3.5

16.0

16.0

15.9

19.0

1.8

22.0

M12(16H)

FH-KB/SS-1255

3.5-5.5

18.0

16.0

15.9

19.0

1.8

24.3

M12

FH-KB/SS-1235(15H)

1.0-3.5

16.0

15.0

14.9

19.0

1.8

22.0

M12

FH-KB/SS-1255(15H)

3.5-5.5

18.0

15.0

14.9

19.0

1.8

24.3
