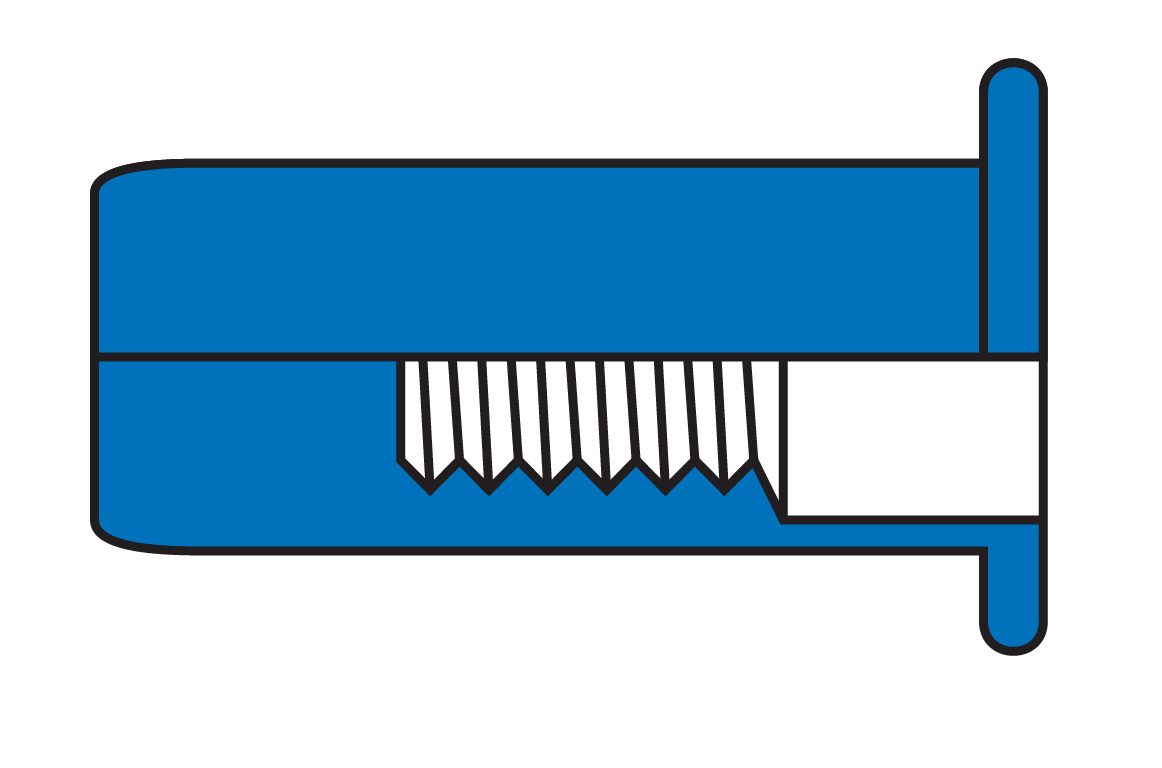

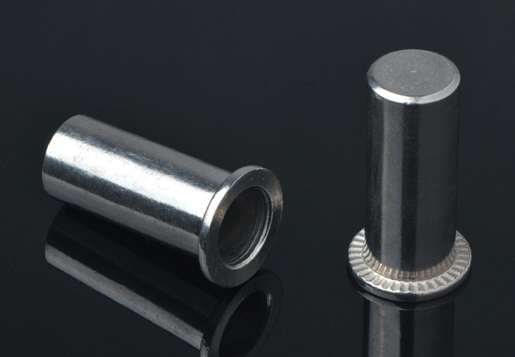

Flat Head Round Body Close End Blind Rivet Nuts
Flat Head Round Body Close End Blind Rivet Nuts
Flat Head Round Body Close End Blind Rivet Nuts
Flat Head Round Body Close End Blind Rivet Nuts
PARAMETER


Flat Head Round Body Close End Blind Rivet Nuts

Thread

P/N

T(GRIP RANGE) Min Max

A       Rer

Hole Size +0.1  0

D      +0.07  -0.1

B

K

L

M4

FH-RBC/SS-0420

0.5-2.0

12.0

6.0

5.9

9.0

0.8

16.5

M4

FH-RBC/SS-0425

1.0-2.5

12.8

6.0

5.9

9.0

0.8

17.3

M5

FH-RBC/SS-0525

0.5-2.5

13.0

7.0

6.9

10.0

1.0

18.0

M5

FH-RBC/SS-0540

2.5-4.0

14.5

7.0

6.9

10.0

1.0

19.5

M6

FH-RBC/SS-0630

0.5-3.0

17.0

9.0

8.9

13.0

1.5

20.5

M6

FH-RBC/SS-0655

3.0-5.5

20.0

9.0

8.9

13.0

1.5

23.5

M8

FH-RBC/SS-0835

0.5-3.5

21.5

11.0

10.9

15.0

1.5

25.5

M8

FH-RBC/SS-0860

3.5-6.0

24.0

11.0

10.9

15.0

1.5

28.0

M10

FH-RBC/SS-1035

0.5-3.5

26.0

13.0

12.9

17.0

1.8

29.0

M10

FH-RBC/SS-1060

3.5-6.0

31.3

13.0

12.9

17.0

1.8

34.3

M12

FH-RBC/SS-1230

0.5-3.0

29.5

16.0

15.9

23.0

2.0

39.0
