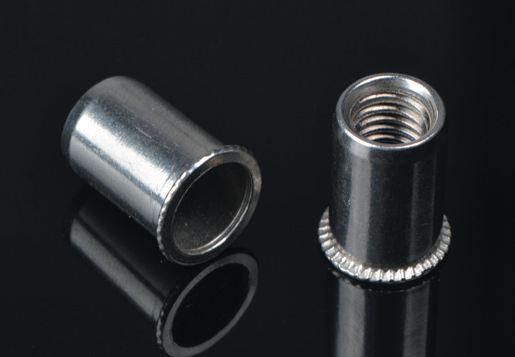

Reduce Head Round Body Blind Rivet Nuts
Reduce Head Round Body Blind Rivet Nuts
Reduce Head Round Body Blind Rivet Nuts
Reduce Head Round Body Blind Rivet Nuts
PARAMETER

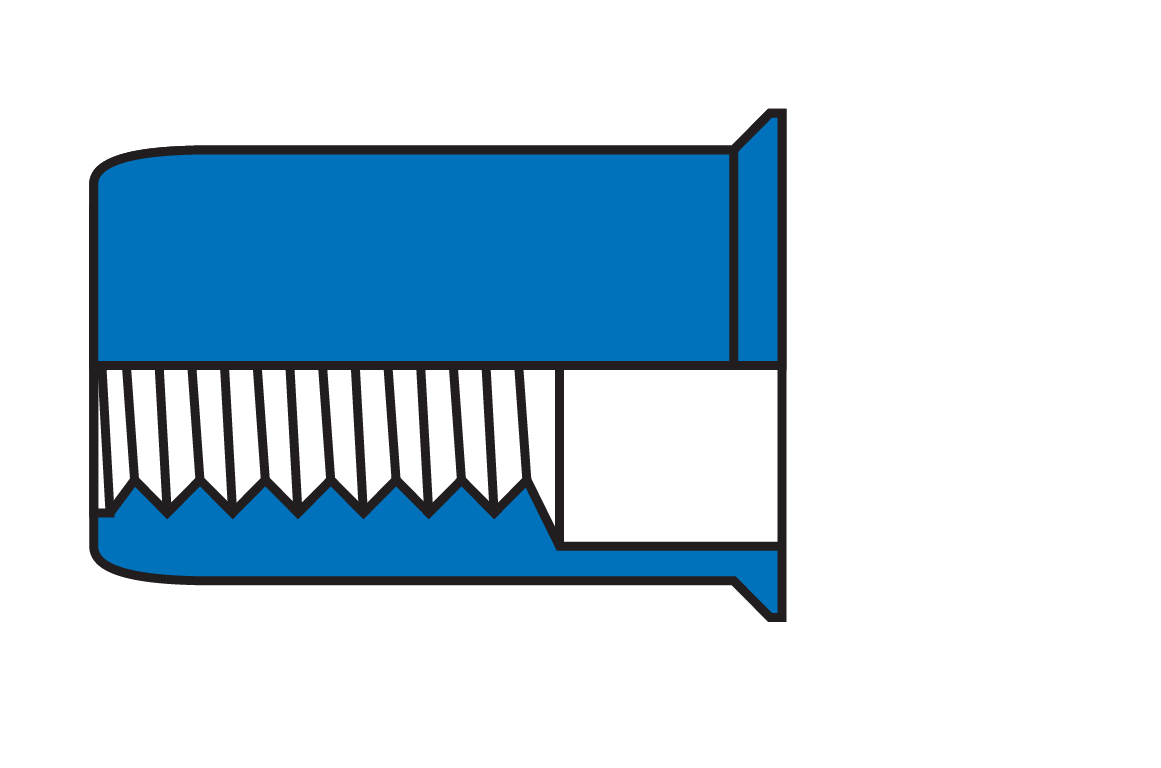

Reduce Head Round Body Blind Rivet Nuts

Thread

P/N

T(GRIP RANGE) Min Max

A       Rer

Hole Size +0.1  0

D      +0.07  -0.1

B

K

L

M3

RH-RB/SS-0315

0.5-1.5

5.0

5.0

4.9

5.5

0.35

8.5

M3

RH-RB/SS-0325

1.5-2.5

6.0

5.0

4.9

5.5

0.35

9.5

M4

RH-RB/SS-0415

0.5-1.5

5.5

6.0

5.9

7.0

0.50

10.0

M4

RH-RB/SS-0425

1.5-2.5

6.5

6.0

5.9

7.0

0.50

11.0

M5

RH-RB/SS-0520

0.5-2.0

6.0

7.0

6.9

8.0

0.60

12.0

M5

RH-RB/SS-0535

2.0-3.5

7.5

7.0

6.9

8.0

0.60

13.5

M6

RH-RB/SS-0630

0.5-3.0

9.0

9.0

8.9

10.0

0.60

14.5

M6

RH-RB/SS-0645

3.0-4.5

10.5

9.0

8.9

10.0

0.60

16.0

M8

RH-RB/SS-0835

0.5-3.5

10.0

11.0

10.9

12.3

0.60

16.5

M8

RH-RB/SS-0850

3.5-5.0

11.5

11.0

10.9

12.3

0.60

18.0

M10

RH-RB/SS-1035

0.5-3.5

12.0

13.0

12.9

14.5

0.85

19.0

M12

RH-RB/SS-1235

0.5-3.5

14.5

15.0

14.9

16.5

0.85

22.5
