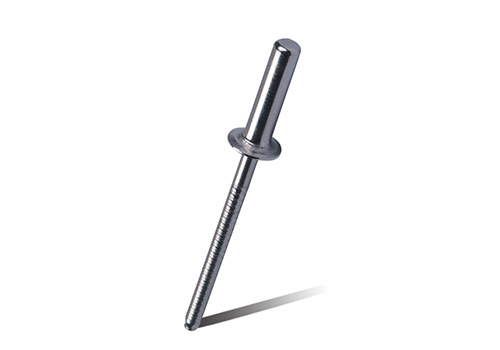

Stainless Steel Body And Stainless Steel  Closed Dome Head
Stainless Steel Body And Stainless Steel  Closed Dome Head
Stainless Steel Body And Stainless Steel  Closed Dome Head
Stainless Steel Body And Stainless Steel  Closed Dome Head
PARAMETER

All Stainless Steel Sealed Type Blind Rivets

Body:

304 Stainless steel

Body

Polished

Mandrel:

420 Stainless steel

Mandrel

Polished


D

L

dk

k

dm

RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)

[+1/-0]

MIN-MAX

MAX.

MAX.

Ф

MIN.

MIN.

3.2    +0.08      -0.15

BBF-S320060

6.0

0.5-1.5

5.8-6.7

1.3

2.15

3.3-3.4

2000

2200

BBF-S320080

8.0

1.5-3.0

BBF-S320095

9.5

3.0-4.5

BBF-S320120

12.0

5.0-6.5

BBF-S320140

14.0

6.5-8.0

4.0   +0.08      -0.15

BBF-S400060

6.0

0.5-1.5

6.9-8.4

1.7

2.75

4.1-4.2

3000

3500

BBF-S400080

8.0

1.5-3.0

BBF-S400095

9.5

3.0-5.0

BBF-S400120

12.0

5.0-6.5

BBF-S400140

14.0

6.5-8.0

BBF-S400160

16.0

8.0-11.0

4.8   +0.08      -0.15

BBF-S480080

8.0

0.5-3.0

8.3-10.1

2.0

3.2

4.9-5.0

4000

4400

BBF-S480095

9.5

3.0-5.0

BBF-S480120

12.0

5.0-6.5

BBF-S480140

14.0

5.0-7.5

BBF-S480160

16.0

6.5-9.0

BBF-S480180

18.0

8.0-10.5

BBF-S480200

20.0

9.0-12.0

6.4   +0.08      -0.15

BBF-S640120

12.0

1.5-6.5

11.6-13.4

2.7

3.9

6.5-6.6

6000

8000

BBF-S640160

16.0

6.5-8.0

BBF-S640180

18.0

8.0-10.0

BBF-S640200

20.0

8.0-12.0

BBF-S640250

25.0

12.0-17.0
