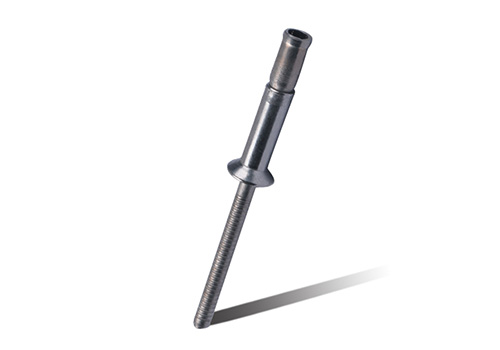

Stainless Steel Body And Stainless Steel MONO-LOCK CSKHEAD
Stainless Steel Body And Stainless Steel MONO-LOCK CSKHEAD
PARAMETER

Stainless Steel Body And Stainless Steel Mandrel(Mono-lock CSK Head)

Body:

304 Series Stainless Steel

Body

Natural

Mandrel:

302 Series Stainless Steel

Mandrel

Natural


D

L

dk

k

dm

RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (KN)

Tensile  (KN)

MAX.

MIN-MAX

MAX.

MAX.

Ф

MIN.

MIN.

4.8         (3/16")

BBMC-0606

20.0

3.17-8.41

8.5

2.2

3.1

4.9-5.1

5.8

4.1

BBMC-0608

26.2

3.17-12.22

5.8

4.1

6.4          (1/4")

BBMC-0808

26.4

3.17-12.07

10.1

2.4

4.1

6.7-7.0

10.5

8.2
