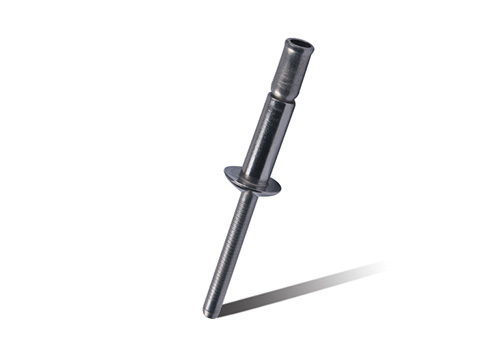

Stainless Steel Body And Stainless Steel MONO-LOCK DOME HEAD
Stainless Steel Body And Stainless Steel MONO-LOCK DOME HEAD
PARAMETER

Stainless Steel Body And Stainless Steel Mandrel(Mono-lock Dome Head)

Body:

Stainless Steel

Body

Natural

Mandrel:

Stainless Steel

Mandrel

Natural


D

L

dk

k

dm

RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (KN)

Tensile  (KN)

MAX.

MIN-MAX

MAX.

MAX.

Ф

MIN.

MIN.

4.8         (3/16")

BBM-0604

18.2

1.63-6.86

10.1

2.1

3.1

4.9-5.1

6.0

4.5

BBM-0607

24.4

1.63-11.10

6.0

4.5

6.4          (1/4")

BBM-0806

23.7

2.03-9.53

13.3

2.9

4.1

6.7-7.0

10.5

8.2

BBM-08010

32.9

2.03-15.87

10.5

8.2
