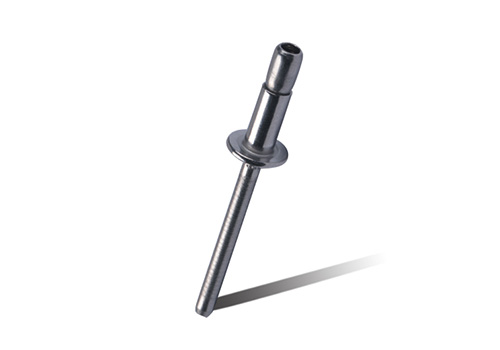

Stainless Steel Body And Stainless Steel NOW-LOCK DOME HEAD
Stainless Steel Body And Stainless Steel NOW-LOCK DOME HEAD
PARAMETER

Stainless Steel Body And Stainless Steel Mandrel(Now-lock Dome Head)

Body:

302 Series Stainless Steel

Body

Natural

Mandrel:

302 Series Stainless Steel

Mandrel

Natural


D

L

dk

k

dm

RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (KN)

Tensile  (KN)

MAX.

MIN-MAX

MAX.

MAX.

Ф

MIN.

MIN.

4.8         (3/16")

BBN-4.8×10.0

18.2

1.58-6.85

10.2

2.3

3.1

4.9-5.1

6.0

4.5

BBN-4.8×14.0

24.6

1.58-11.09

6.0

4.5

6.4          (1/4")

BBN-6.4×14.0

25.3

2.04-9.52

13.5

2.9

4.1

6.7-7.0

10.5

8.2

BBN-6.4×20.0

35.6

2.04-15.87

10.5

8.2
