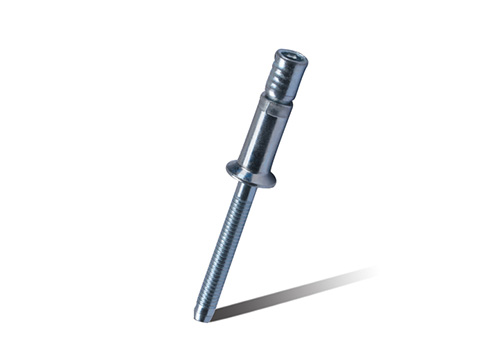

Steel Body And Steel Mandrel(Now-lock CSK Head)
Steel Body And Steel Mandrel(Now-lock CSK Head)
PARAMETER

Steel Body And Steel Mandrel(Now-lock CSK Head)

Body:

Carbon Steel

Body

Zinc Plated

Mandrel:

Carbon Steel

Mandrel

Zinc Plated


D

L

dk

k

dm

RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (KN)

Tensile  (KN)

MAX.

MIN-MAX

MAX.

MAX.

Ф

MIN.

MIN.

4.8         (3/16")

SSMC-0606

20.2

3.17-8.41

8.5

2.2

3.1

4.9-5.1

5.8

4.1

SSMC-0608

26.5

3.17-12.22

5.8

4.1

6.4          (1/4")

SSMC-0808

28.3

4.32-12.06

10.1

2.4

4.1

6.7-7.0

10.5

8.2
