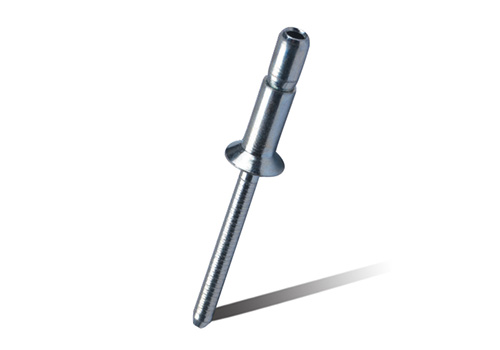

Steel Body And Steel Mandrel NOW-LOCK CSK HEAD
Steel Body And Steel Mandrel NOW-LOCK CSK HEAD
PARAMETER

Steel Body And Steel Mandrel(Now-lock CSK Head)

Body:

Carbon Steel

Body

Zinc Plated

Mandrel:

Carbon Steel

Mandrel

Zinc Plated


D

L

dk

k

dm

RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (KN)

Tensile  (KN)

MAX.

MIN-MAX

MAX.

MAX.

Ф

MIN.

MIN.

4.8         (3/16")

SSNC-4.8×12.0

20.2

3.17-8.41

9.2

2.0

3.1

4.9-5.1

5.4

4.0

SSNC-4.8×14.0

26.5

3.17-12.22

5.4

4.0

6.4          (1/4")

SSNC-6.4×17.0

28.3

4.32-12.06

11.4

2.2

4.1

6.7-7.0

10.5

8.2
