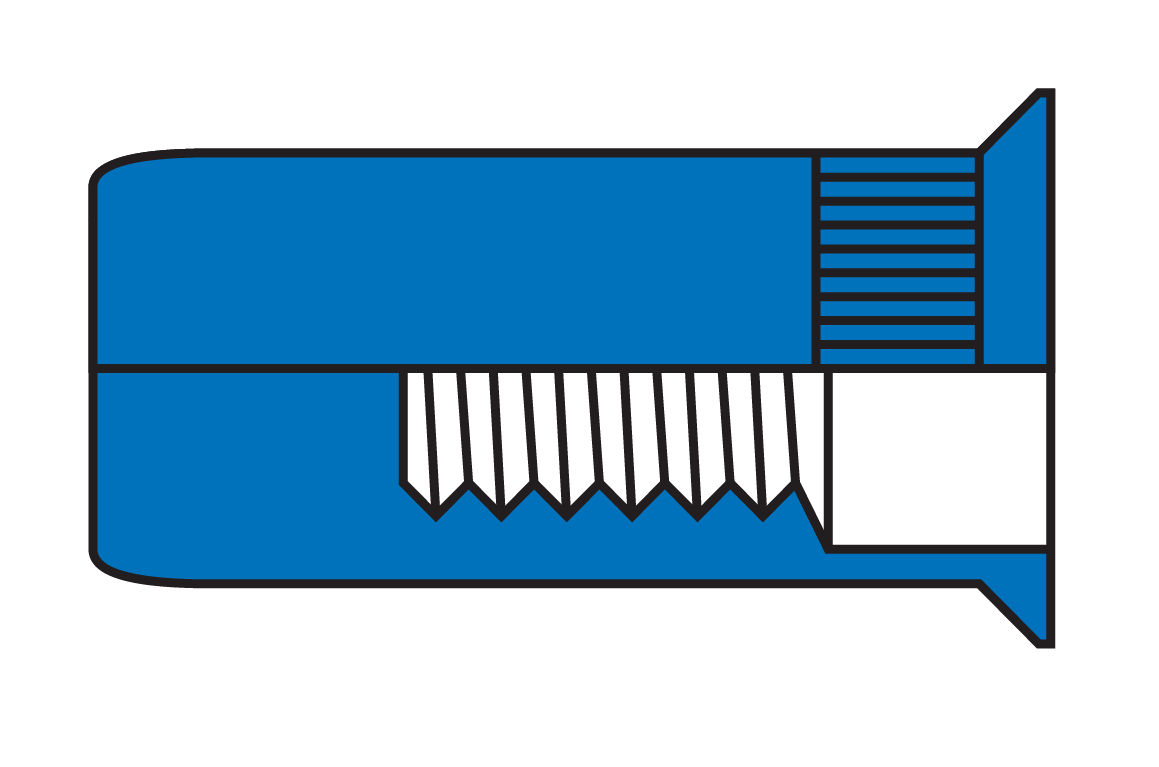

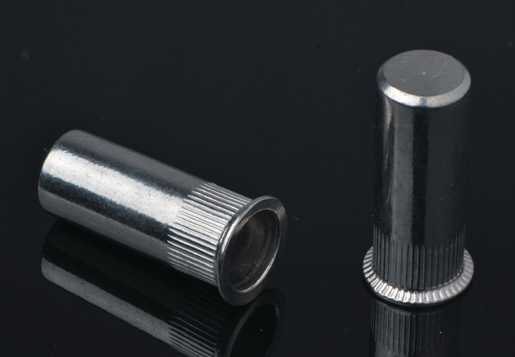

Countersunk Knurled Body Close End Blind Rivet Nuts
|
Thread |
P/N |
T（GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B |
K |
L |
|
M4 |
CH-KBC/SS-0435 |
1.6-3.5 |
12.3 |
6.0 |
5.9 |
9.0 |
1.5 |
17.3 |
|
M5 |
CH-KBC/SS-0535 |
1.6-3.5 |
13.5 |
7.0 |
6.9 |
10.0 |
1.5 |
19.5 |
|
M6 |
CH-KBC/SS-0640 |
1.6-4.0 |
17.5 |
9.0 |
8.9 |
12.0 |
1.5 |
23.5 |
|
M8 |
CH-KBC/SS-0845 |
1.6-4.5 |
20.0 |
11.0 |
10.9 |
14.0 |
1.5 |
26.5 |
|
M10 |
CH-KBC/SS-1050 |
1.6-5.0 |
25.5 |
13.0 |
12.9 |
16.0 |
1.7 |
33.0 |
|
M12 |
CH-KBC/SS-1235 |
1.6-3.5 |
29.5 |
16.0 |
15.9 |
19.0 |
1.8 |
38.0 |
