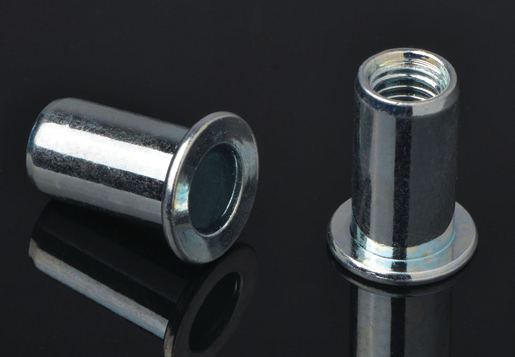

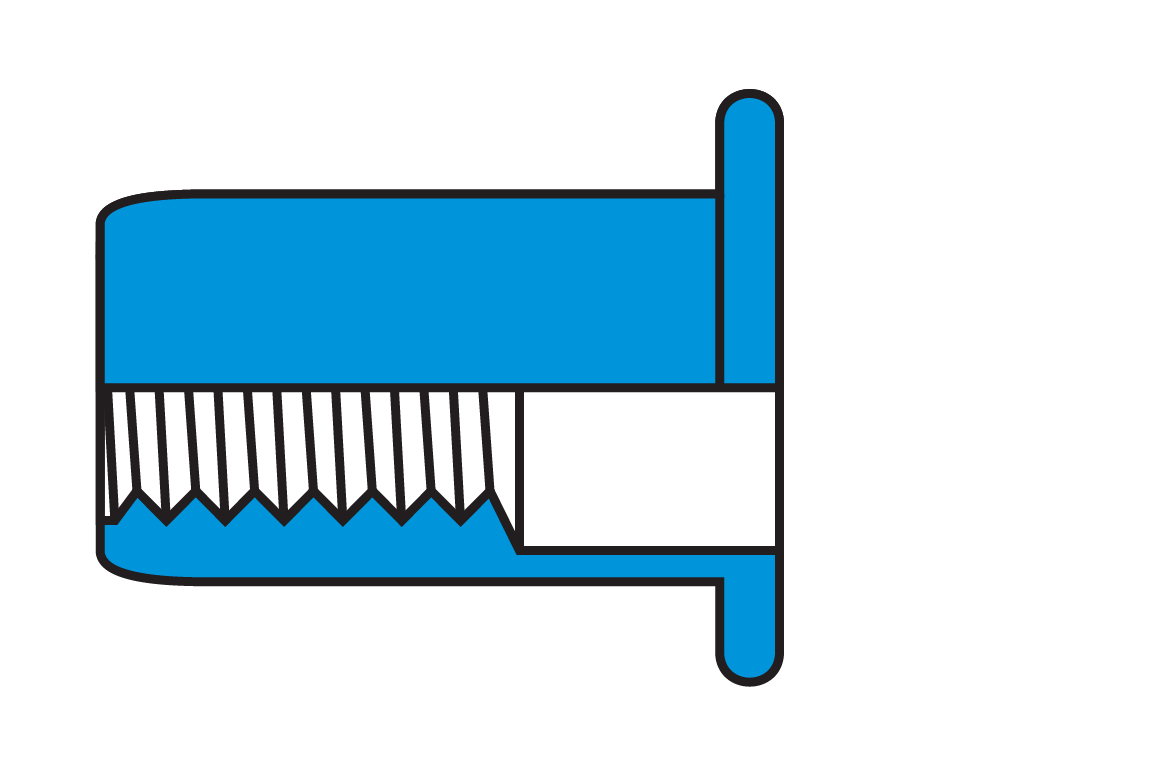

Flat Head Round Body plain Blind Rivet Nuts
|
Thread |
P/N |
T（GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B |
K |
L |
|
M3 |
FH-RB-0315 |
0.5-1.5 |
4.7 |
5.0 |
4.9 |
7.2 |
0.8 |
8.5 |
|
M3 |
FH-RB-0325 |
1.5-2.5 |
4.7 |
5.0 |
4.9 |
7.2 |
0.8 |
9.5 |
|
M4 |
FH-RB-0420 |
0.5-2.0 |
6.0 |
6.0 |
5.9 |
8.5 |
0.8 |
10.3 |
|
M4 |
FH-RB-0435 |
2.0-3.5 |
6.0 |
6.0 |
5.9 |
8.5 |
0.8 |
12.0 |
|
M5 |
FH-RB-0525 |
0.5-2.5 |
7.5 |
7.0 |
6.9 |
10.0 |
1.0 |
13.0 |
|
M5 |
FH-RB-0550 |
2.5-5.0 |
8.5 |
7.0 |
6.9 |
10.0 |
1.0 |
17.0 |
|
M6 |
FH-RB-0630 |
0.5-3.0 |
9.2 |
9.0 |
8.9 |
12.3 |
1.3 |
15.5 |
|
M6 |
FH-RB-0655 |
3.0-5.5 |
9.2 |
9.0 |
8.9 |
12.3 |
1.3 |
18.0 |
|
M8 |
FH-RB-0835 |
0.5-3.5 |
11.5 |
11.0 |
10.9 |
15.0 |
1.5 |
18.5 |
|
M8 |
FH-RB-0860 |
3.5-6.0 |
11.5 |
11.0 |
10.9 |
15.0 |
1.5 |
21.0 |
|
M10 |
FH-RB-1025 |
0.5-2.5 |
11.5 |
13.0 |
12.9 |
16.3 |
1.5 |
17.0 |
|
M10 |
FH-RB-1040 |
2.5-4.0 |
12.5 |
13.0 |
12.9 |
17.0 |
1.6 |
21.0 |
|
M10 |
FH-RB-1035(12H) |
1.0-3.5 |
11.0 |
12.0 |
11.9 |
16.0 |
1.6 |
19.0 |
|
M12 |
FH-RB-1240 |
1.0-4.0 |
13.5 |
15.0 |
14.9 |
18.0 |
1.7 |
22.0 |
|
M12 |
FH-RB-1265 |
4.0-6.5 |
13.5 |
15.0 |
14.9 |
18.0 |
1.7 |
25.0 |
|
M12 |
FH-RB-1240(16H) |
1.0-4.0 |
16.0 |
16.0 |
15.9 |
22.0 |
2.0 |
25.0 |
|
M16 |
FH-RB16 |
2.5-5.0 |
20.0 |
21.0 |
20.9 |
26.0 |
2.5 |
33.0 |
