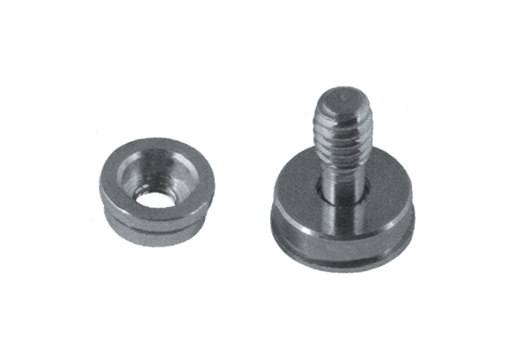

Flush-Mounted Retainers
Flush-Mounted Retainers
Flush-Mounted Retainers
Flush-Mounted Retainers
PR10
Flush-Mounted Retainers download
PARAMETER
All dimensions are in inches (Size Unit: inch)

UNIFIED

Thread Size

Type

Thread Code

A
(Shank)
Max.

Min.Sheet for Self Clinching

Min.Sheet for Flush Installation

Hole Size In Sheet
+.003 -.000

B
Nom.

C
Max.

E
Nom.

H
Nom.

Min.Dist Hole C/L To Edge

.112-40(#4-40)

PR10

440

.125

.050

.125

.281

.195

.280

.31

.075

.31

.138-32(#6-32)

PR10

632

.125

.050

.125

.312

.225

.311

.34

.075

.33

.164-32(#8-32)

PR10

832

.125

.050

.125

.344

.225

.343

.37

.075

.34

.190-32(#10-32)

PR10

032

.125

.050

.125

.375

.290

.374

.41

.075

.36


All dimensions are in millimeters (Size Unit: mm)

METRIC

Thread Size

Type

Thread Code

A
(Shank)
Max.

Min.Sheet for Self Clinching

Min.Sheet for Flush Installation

Hole Size In Sheet
+0.08

B
Nom.

C
Max.

E
Nom.

H
Nom.

Min.Dist Hole C/L To Edge

M3X0.5

PR10

M3

3.18

1.27

3.18

7.14

4.75

7.12

7.87

1.91

7.87

M4X0.7

PR10

M4

3.18

1.27

3.18

8.74

6.48

8.72

9.53

1.91

8.64

M5X0.8

PR10

M5

3.18

1.27

3.18

9.53

7.37

9.5

10.41

1.91

9.14
