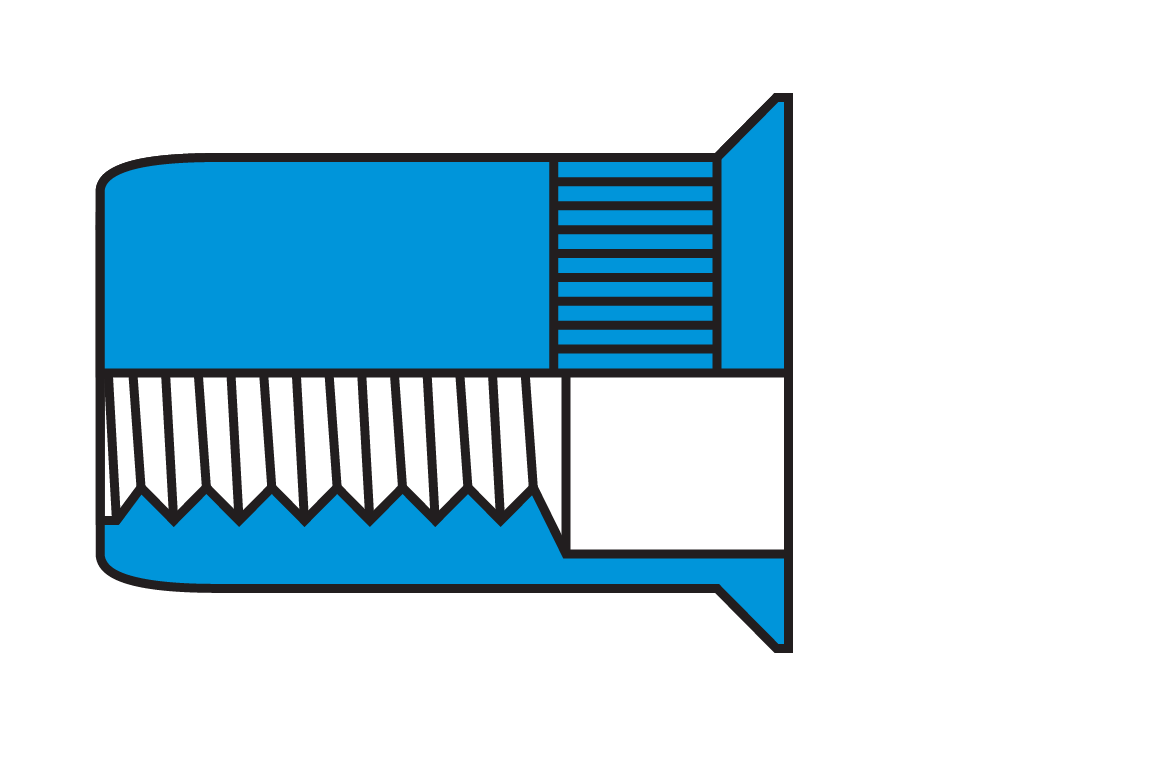

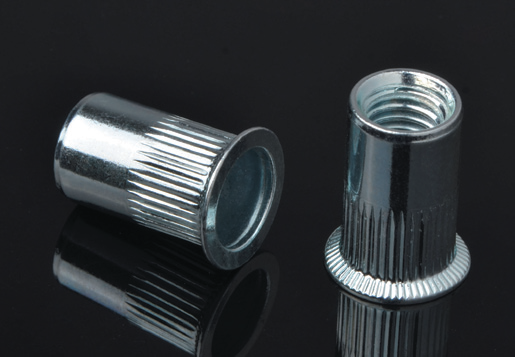

Countersunk Head Knurled Body Blind Rivet Nuts
|
Thread |
P/N |
T（GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 0 |
D |
B |
K |
L |
|
M4 |
CH-KB-0430 |
1.5-3.0 |
6.5 |
6.0 |
5.9 |
9.0 |
1.5 |
12.0 |
|
M5 |
CH-KB-0535 |
1.5-3.5 |
7.5 |
7.0 |
6.9 |
10.0 |
1.5 |
13.0 |
|
M6 |
CH-KB-0640 |
1.5-4.0 |
9.0 |
9.0 |
8.9 |
12.0 |
1.5 |
15.5 |
|
M8 |
CH-KB-0845 |
2.0-4.5 |
11.0 |
11.0 |
10.9 |
14.0 |
1.5 |
18.5 |
|
M10 |
CH-KB-1050 |
2.0-5.0 |
13.0 |
13.0 |
12.9 |
16.0 |
1.5 |
21.0 |
|
M12 |
CH-KB-1250(16H) |
2.0-5.0 |
16.5 |
16.0 |
15.9 |
19.0 |
1.5 |
24.0 |
