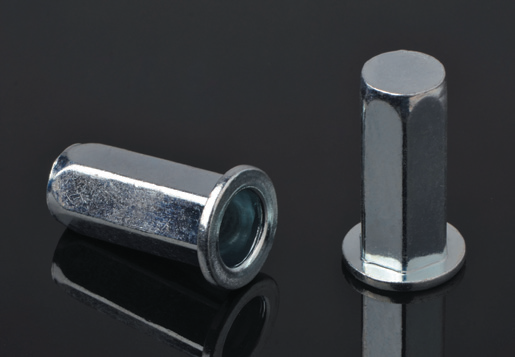

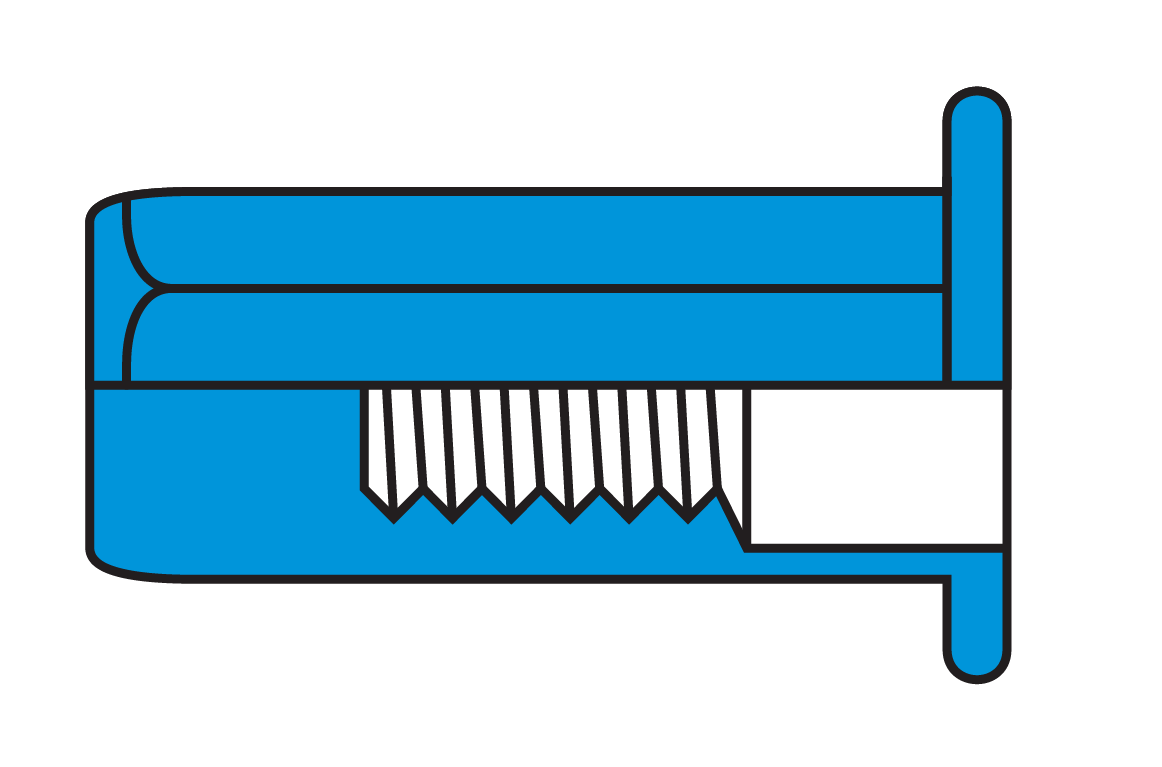

Flat Head Full Hex Body Close End Blind Rivet Nuts
|
Thread |
P/N |
T（GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 |
HD |
B |
K |
L |
|
M4 |
FH-FHBC-0420 |
0.5-2.0 |
11.0 |
6.0 |
5.9 |
9.0 |
1.0 |
15.0 |
|
M5 |
FH-FHBC-0525 |
0.5-2.5 |
13.5 |
7.0 |
6.9 |
10.0 |
1.0 |
18.0 |
|
M6 |
FH-FHBC-0630 |
0.5-3.0 |
17.0 |
9.0 |
8.9 |
12.7 |
1.5 |
23.0 |
|
M8 |
FH-FHBC-0835 |
1.0-3.5 |
19.0 |
11.0 |
10.9 |
16.0 |
1.5 |
26.0 |
|
M10 |
FH-FHBC-1040 |
1.0-4.0 |
25.0 |
13.0 |
12.9 |
19.0 |
2.0 |
33.0 |
