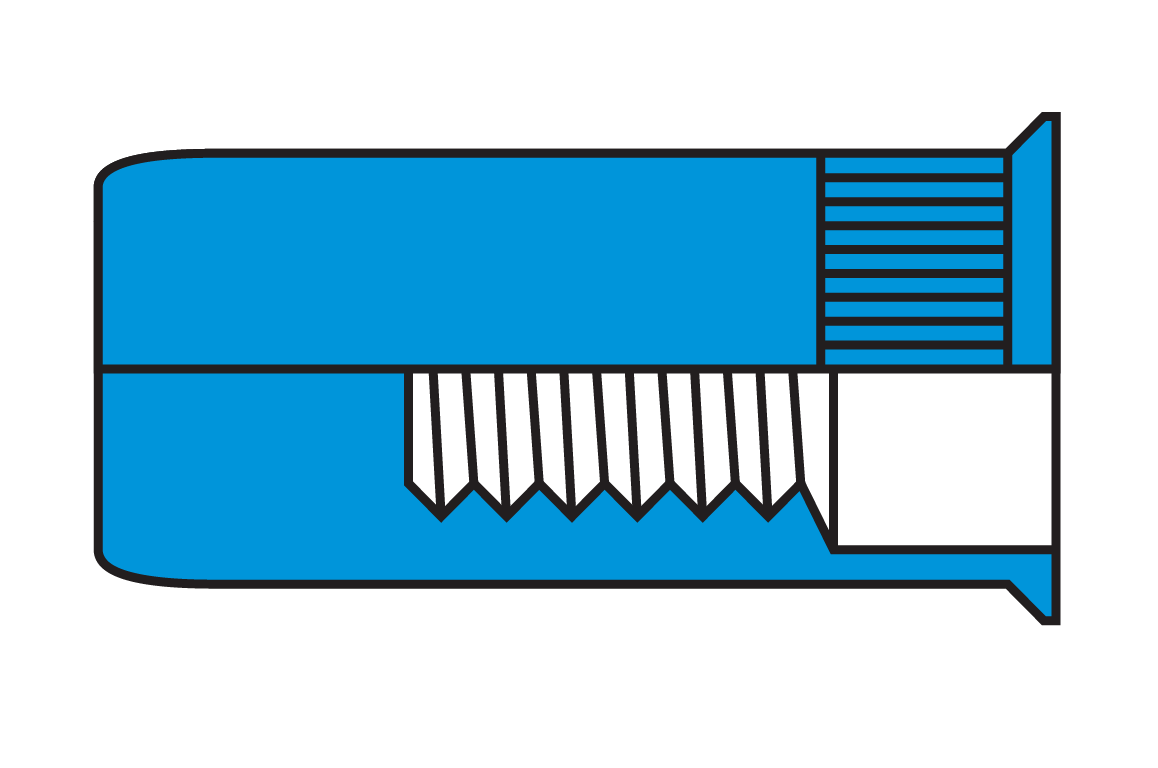

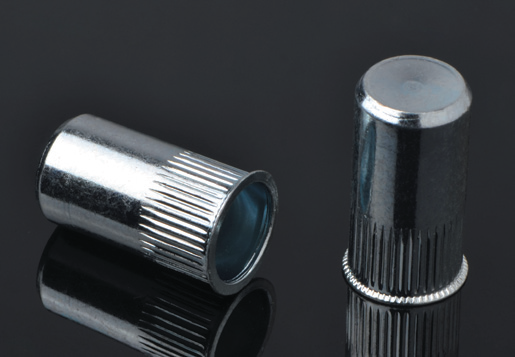

Reduce Head Knurled Body Close End Blind Rivet Nuts
|
Thread |
P/N |
T（GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 0 |
D +0.07 |
B |
K |
L |
|
M4 |
RH-KBC-0420 |
0.5-2.0 |
11.0 |
6.0 |
5.9 |
7.0 |
0.5 |
15.0 |
|
M4 |
RH-KBC-0435 |
2.0-3.5 |
11.0 |
6.0 |
5.9 |
7.0 |
0.5 |
16.5 |
|
M5 |
RH-KBC-0520 |
0.5-2.0 |
12.5 |
7.0 |
6.9 |
8.0 |
0.5 |
16.5 |
|
M5 |
RH-KBC-0535 |
2.0-3.5 |
12.5 |
7.0 |
6.9 |
8.0 |
0.5 |
18.0 |
|
M6 |
RH-KBC-0630 |
0.5-3.0 |
15.5 |
9.0 |
8.9 |
10.0 |
0.6 |
20.5 |
|
M6 |
RH-KBC-0645 |
3.0-4.5 |
15.5 |
9.0 |
8.9 |
10.0 |
0.6 |
22.0 |
|
M8 |
RH-KBC-0830 |
0.5-3.0 |
17.0 |
11.0 |
10.9 |
12.0 |
0.65 |
23.0 |
|
M8 |
RH-KBC-0845 |
3.0-4.5 |
17.0 |
11.0 |
10.9 |
12.0 |
0.65 |
24.5 |
|
M10 |
RH-KBC-1030 |
1.0-3.0 |
18.2 |
13.0 |
12.9 |
14.0 |
0.7 |
24.5 |
|
M10 |
RH-KBC-1050 |
3.0-5.0 |
18.2 |
13.0 |
12.9 |
14.0 |
0.7 |
26.0 |
